Description


Ideal for high volume operations, each Vertical Air Chiller contains multiple semi-hermetic reciprocating compressors with capacity unloading. The GD-70H-2C is built with two 35 HP compressors partnered with oversized air-cooled condensers, maximizing efficiency and cooling capacity. Vertical Air Chillers are complete package and turnkey units with oversized stainless steel reservoirs, process and chiller pumps, compressors, and condensers. G&D Chillers will help engineer the optimum solution right down to the placement and commissioning of your unit at your facility.

Key Specs


  • (WxLxH): 91” x 113” x 108”
  • Tank Volume: 465 Gallons
  • Process Pump: 7.5 HP
  • Chiller Pump: 2 HP
  • GPM @ 25PSI: 230 GPM
  • Operating Weight: 10,400 lbs
  • Connection Size: 3"
Request A Quote

Features


  • High efficiency semi-hermetic compressors with unloaders
  • Industry leading high efficiency brazed plate HX
  • Air or water cooled condenser
  • Suction accumulators
  • Liquid receivers with service valves
  • Removable core filter dryers
  • High/low pressure switches
  • Oil failure control
  • Fan cycling controls
  • Crank case heater
  • Stainless steel glycol reservoir
  • Chiller pump
  • Process pump
  • Temp and pressure gauges
  • Union and ball valve for pump isolation
  • All insulated copper piping
  • Complete NEMA 3R Enclosure
  • Single point electrical connection
  • Circuit breakers and motor starts
  • Phase and voltage monitoring protection
  • Motor overload protection
  • Microprocessor controller with communication capabilities
  • Freeze stat
  • Flow switch
  • Two year parts and one year labor warranty

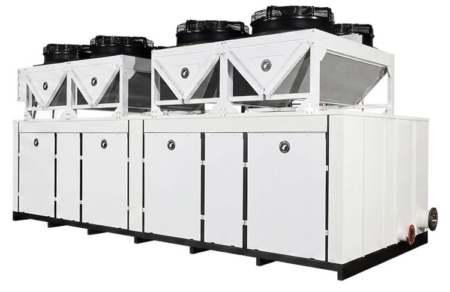

Vertical Air Series

Select Models

The Vertical Air series are complete turnkey packaged chillers ideal for high volume operations. To maximize capacity and efficiency, each chiller contains efficient semi-hermetic compressors that are partnered with an oversized vertical discharge condenser.

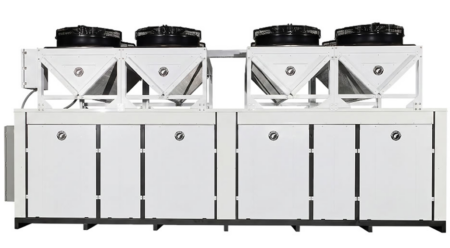

Vertical Air Chiller
