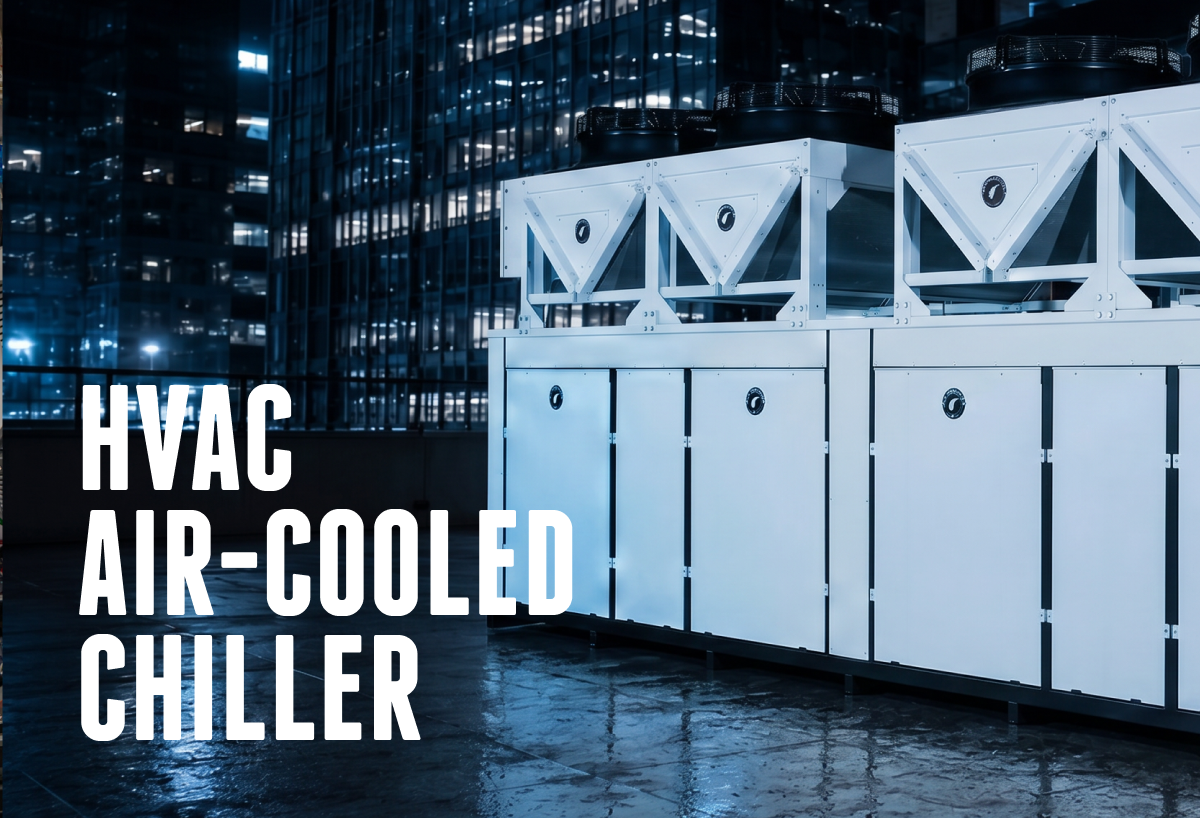

What Is An Air-Cooled Chiller? How Commercial and Industrial Systems Work

If you've spent any time evaluating commercial or industrial cooling options, you've almost certainly come across air-cooled HVAC chillers — and for good reason. They're widely deployed, relatively simple to install, and don't require the water infrastructure that water-cooled alternatives demand. But understanding how they actually work — and where they perform best — matters before you specify one.

What Is an HVAC Air-Cooled Chiller?

An HVAC air-cooled chiller is a mechanical refrigeration system that removes heat from a building or process by circulating chilled water through the facility, then rejecting that heat to the outside air through a condenser coil. Unlike water-cooled systems, there's no cooling tower, no water treatment loop, and no separate condenser water circuit — the system uses ambient air to do the final heat rejection.

That simplicity is one of its core advantages. But it also means performance is directly tied to outdoor air temperature in ways a water-cooled system isn't.

How the System Works: The Refrigeration Cycle

An industrial or commercial air-cooled chiller operates on the vapor-compression refrigeration cycle — the same fundamental process used in a household refrigerator, scaled up for commercial load. Here's how heat moves through the system:

• Heat Absorption (Evaporator): Warm return water from the building or process enters the chiller's evaporator. Refrigerant inside the evaporator absorbs that heat and evaporates from liquid to vapor.
• Compression: The refrigerant vapor moves to the compressor, where it's pressurized — raising its temperature significantly.
• Heat Rejection (Condenser): High-pressure, high-temperature refrigerant flows through the air-cooled condenser coils. Fans pull ambient air across the coils, transferring heat from the refrigerant to the outside air. The refrigerant condenses back to liquid.
• Expansion: The liquid refrigerant passes through an expansion valve, dropping in pressure and temperature, and the cycle repeats.

The net result: chilled water leaves the evaporator (typically at 42°F–48°F), is pumped through the facility to handle cooling loads, and returns warmer to start the cycle again.

"Air-cooled systems give facilities more flexibility — especially where water or maintenance resources are limited. You're not managing a cooling tower, water chemistry, or a condenser water pump system. That simplicity has real operational value."— Justin Thomas, General Manager, G&D Chillers

Key Components at a Glance

Component	Function
Compressor	Pressurizes refrigerant vapor to drive the cycle
Evaporator	Absorbs heat from chilled water loop into refrigerant
Air-Cooled Condenser	Rejects heat from refrigerant to ambient air via fans
Expansion Valve	Reduces refrigerant pressure/temperature before evaporator
Chilled Water Pump	Circulates chilled water from chiller to facility loads
Controls / BMS Interface	Monitors setpoints, performance, alarms, and efficiency

Where Air-Cooled Chillers Are Used

The right setting for an air-cooled chiller is one where simplicity, fast deployment, and lower maintenance burden outweigh the efficiency edge that water-cooled systems can offer in large-scale applications. Common deployments include:

• Commercial buildings (offices, retail, healthcare, hospitality)
• Light industrial and manufacturing facilities
• Data center perimeter cooling and supplemental loads
• Pharmaceutical and laboratory environments
• Food and beverage operations where process cooling meets HVAC needs

Performance Factors to Understand

One characteristic engineers must plan around: air-cooled chiller efficiency drops as ambient temperatures rise. At 95°F outdoor air, the system works harder to reject heat than it does at 65°F. This isn't a design flaw — it's physics — but it affects how you size the system and what efficiency benchmarks you apply.

Design tip: Always size air-cooled chillers for peak ambient conditions in your climate, not average conditions. A chiller specified at 85°F design day will be undersized on a 100°F afternoon.

For facilities in hot climates with sustained high ambient temperatures and large loads, water-cooled systems may offer meaningful efficiency advantages. For most mid-size commercial applications, air-cooled systems deliver a better balance of performance, simplicity, and lifecycle cost.

Frequently Asked Questions

Do air-cooled chillers require water?

No water is used in the heat rejection process. Some systems use an optional pre-cooling evaporative pad on the condenser inlet to improve hot-weather performance, but standard air-cooled chillers are fully air-dependent.

What's the typical chilled water supply temperature?

Most HVAC applications target 44°F–46°F chilled water supply temperature. Tighter setpoints require more energy; looser setpoints may not meet comfort or process requirements. System design should confirm the right setpoint for your load.

How long do air-cooled chillers last?

With proper maintenance, 20–25 years is achievable. Compressor health, coil condition, and refrigerant circuit integrity are the primary longevity factors.
