HVAC Series / 25 Ton Air-Cooled Chiller |GD-25T-2

Technical Specs Warranty File

Description

The G&D Summit Air GD-25T HVAC Chiller provides 25 tons of cooling capacity for light commercial and institutional applications. Designed for efficient and quiet operation, it offers consistent performance across varying load conditions while maintaining a compact footprint.

This packaged HVAC cooling system integrates compressors, pumps, and condenser components into a single system, reducing installation complexity and improving long-term reliability. It is ideal for offices, retail centers, and smaller facilities.

Key Specs

  • Capacity: 25 Ton
  • Configuration: Vertical Air-Cooled

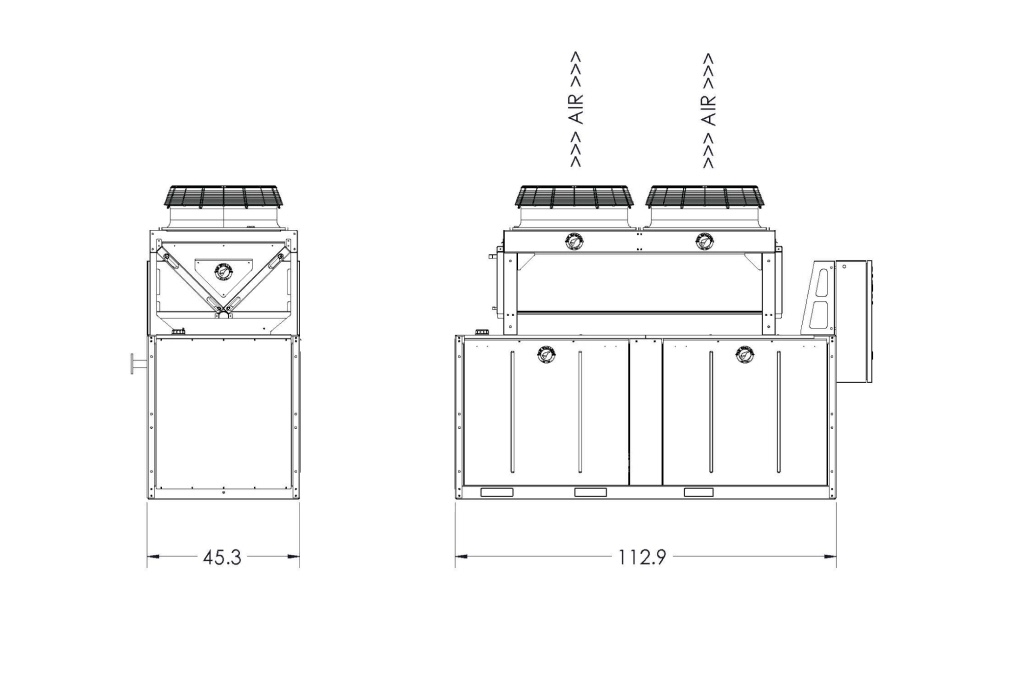

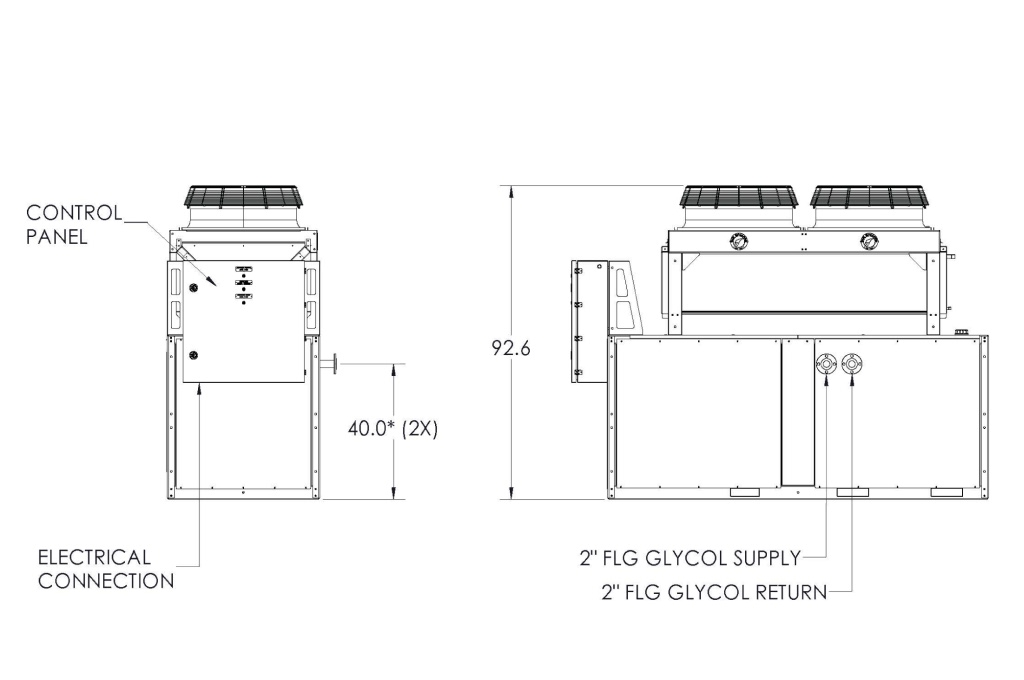

  • (WxLxH): 45" x 113" x 108"
  • Tank Volume: Factory Option Available
  • Process Pump: Factory Option Available
  • Chiller Pump: Factory Option Available
  • GPM @ 25PSI: 52.52 GPM
  • Operating Weight: 4,800 lbs
  • Connection Size: 2"
  • Pressure Drop (PSID): 1.9 PSID
Request A Quote

  • FEATURES

    • Dual refrigeration circuits for system redundancy and reliability
    • High-efficiency scroll compressors for optimized energy performance
    • Air-cooled condenser system designed for efficient heat rejection
    • Insulated stainless steel tank for thermal stability
    • Microprocessor controller with advanced system monitoring
    • Compatible with BMS integration
    • Freeze protection and safety controls
    • Insulated piping for improved efficiency
    • Compact footprint and low-maintenance design
    • Factory tested, charged, and ready for startup

  • APPLICATIONS

    • Commercial office buildings
    • Healthcare facilities and clinics
    • Data centers and IT environments
    • Educational campuses and schools
    • Industrial and manufacturing facilities
    • Multi-building HVAC systems

Why G&D Chillers for HVAC?

G&D delivers engineered solutions.

  • Application focused design support
  • Direct access to engineers (presale and post installation)
  • Customization without complexity
  • Proven reliability across process and industrial cooling
