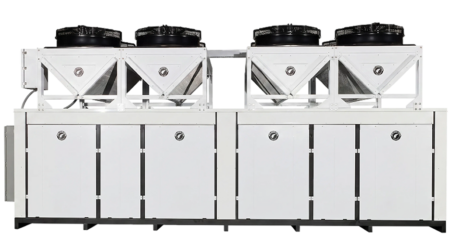

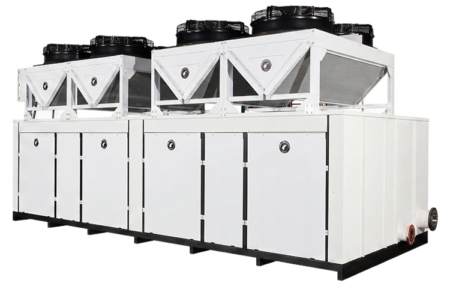

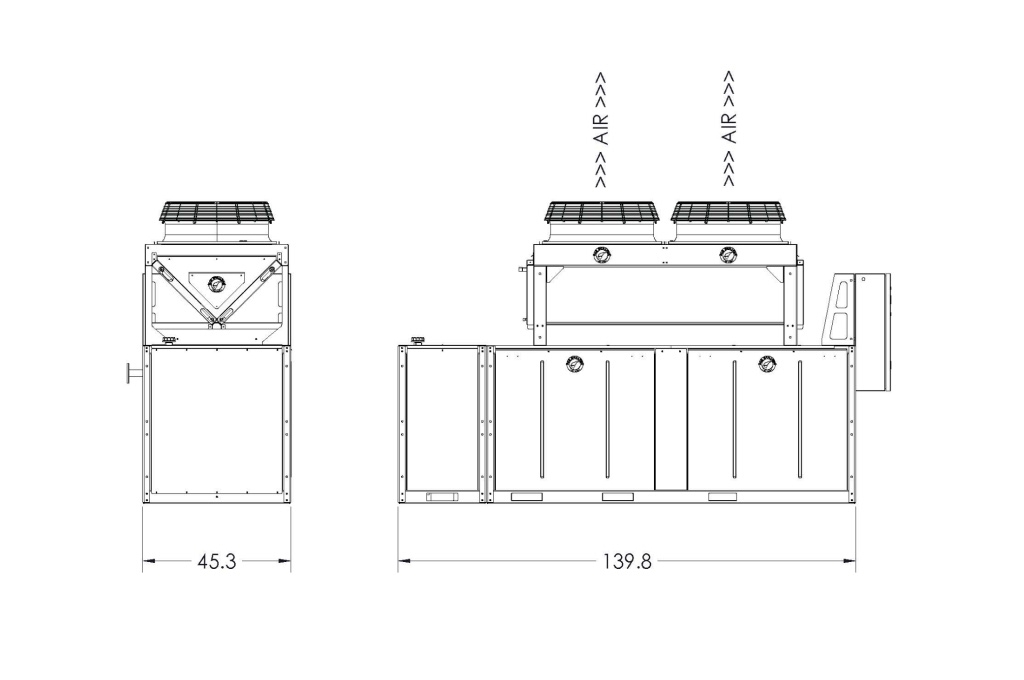

Technical Specs Warranty File Description The G&D Summit Air GD-30T HVAC Chiller delivers 30 tons of reliable cooling capacity for small to mid-size commercial and institutional facilities. Designed to balance performance and efficiency, it provides stable operation where consistent temperature control is essential. As a packaged system, this system combines compressors, pumps, and condenser systems into a single unit, simplifying installation. It is widely used in schools, municipal buildings, and light industrial applications. Key Specs Capacity: 30 Ton Configuration: Vertical Air-Cooled (WxLxH): 45" x 140" x 108" Tank Volume: Factory Option Available Process Pump: Factory Option Available Chiller Pump: Factory Option Available GPM @ 25PSI: 72.78 GPM Operating Weight: 5,500 lbs Connection Size: 2" Pressure Drop (PSID): 2.1 PSID Request A Quote FEATURES Dual refrigeration circuits for reliability High-efficiency scroll compressors Air-cooled condenser system for efficient heat rejection Microprocessor controls with monitoring capability BMS compatibility Freeze protection systems Insulated piping for energy efficiency Low-maintenance design Factory tested and ready for startup APPLICATIONS Commercial office buildings Healthcare facilities and clinics Data centers and IT environments Educational campuses and schools Industrial and manufacturing facilities Multi-building HVAC systems HVAC SeriesSelect ModelsExplore the G&D Summit Air Series of commercial air-cooled chillers (20–200 tons) designed for high-performance, energy-efficient HVAC systems. These packaged units feature advanced controls, scroll compressors, and BMS integration for reliable, low-maintenance cooling across commercial and industrial applications.GD-20T-2GD-25T-2GD-30T-2GD-40T-2GD-50T-2GD-65T-2GD-80T-4GD-100T-4GD-110T-4EGD-140T-4HEGD-200T-6
